PEX Belden 549945 RG 59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire USA P14739596PEX-102-1426 https://cdnimages.opentip.com/full/PEX/PEX-102-1426.jpg Belden 549945 RG 59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire USA Manufacturer Part Number: 549945 010500Belden 549945 RG-59/U coaxial cable makes it much more convenient to run video and power to security cameras. No need to deal with two separate cables!Key Features: CCTV + power/audio cable suited ideally for pan/tilt/zoom cameras High-conductivity 20 AWG solid bare copper with foam polyolefin Separate 18 AWG stranded bare copper pair with polyolefin insulation Siamese PVC jacket combines two cables; no need to do two runs 95% bare copper braid provides excellent rejection of interference Rated CMG, RG-59 Belden 549945 RG-59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire 500 ft. USASave time and money by running Belden 549945 RG-59U coaxial cable to your surveillance cameras. This \"Siamesed\" cable combo incorporates a premium-quality coaxial cable and an 18 AWG stranded pair, all in one convenient combined jacket. Run video and power lines to PTZ (pan/tilt/zoom) cameras quickly and easily. The unshielded pair is also useful for running separate speaker-level audio signals alongside video.Specifications: Center conductor: 0.032\" dia. bare copper Insulation: Gas-injected FHDPE 0.145\" dia. Outer jacket: PVC Nominal impedance: 75 ohms Velocity of propagation: 83% Capacitance: 16.2 pF/ft. Nominal attenuation: 0.67 dB/100 ft. @ 1 MHz Overall diameter: 0.232 x 0.450\".Product Details BrandBelden Model549945 010500 Part Number102-1426 UPC848864005959 Unit of MeasureEach Weight26.7 Product Specifications Coaxial Cable TypeRG-59/U Jacket ColorBlack Special FeaturesSiamese with 18/2 14739596 848864005959 32.0400lbs 0.00 0.00 0.00
Belden
339.58 2025-07-12 Only 1 left In Stock

Belden 549945 RG-59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire 500 ft. USA

Brand Belden
Shop more from PEX

UPC: 848864005959
SKU: PEX-102-1426-P
Price:
$339.58Free shipping on orders over $65 on select PEX- items. Details
Length:
Quantity:
Only 1 left In Stock
*  Click "Add to Cart" to calculate shipping and delivery time.
Share & Earn 10% Cash Back Best Price in Bulk

Pricing Note

Free Shipping Promotion: Buy more items from the same series, product code beginning with PEX-, and you can get free shipping for an order of over  $65.00  consisting of only PEX- series products.

Product Description

Manufacturer Part Number: 549945 010500

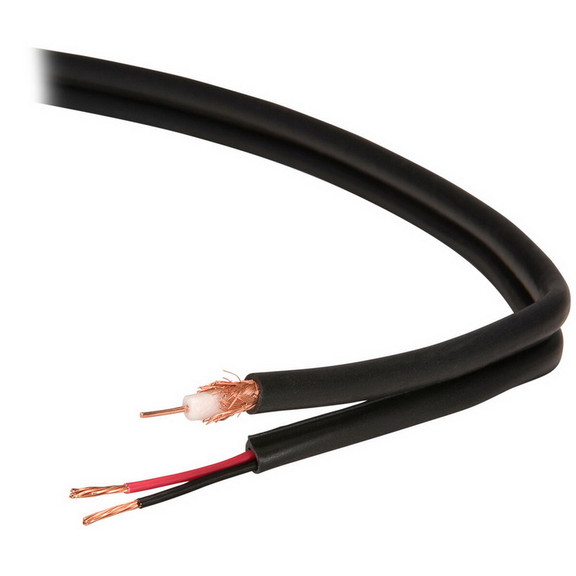

Belden 549945 RG-59/U coaxial cable makes it much more convenient to run video and power to security cameras. No need to deal with two separate cables!

Key Features:
  • CCTV + power/audio cable suited ideally for pan/tilt/zoom cameras
  • High-conductivity 20 AWG solid bare copper with foam polyolefin
  • Separate 18 AWG stranded bare copper pair with polyolefin insulation
  • Siamese PVC jacket combines two cables; no need to do two runs
  • 95% bare copper braid provides excellent rejection of interference
  • Rated CMG, RG-59


Belden 549945 RG-59/U Coaxial Cable 20 AWG Copper 75 Ohm with Siamese 18 AWG 2C Wire 500 ft. USA

Save time and money by running Belden 549945 RG-59U coaxial cable to your surveillance cameras. This "Siamesed" cable combo incorporates a premium-quality coaxial cable and an 18 AWG stranded pair, all in one convenient combined jacket. Run video and power lines to PTZ (pan/tilt/zoom) cameras quickly and easily. The unshielded pair is also useful for running separate speaker-level audio signals alongside video.

Specifications: Center conductor: 0.032" dia. bare copper Insulation: Gas-injected FHDPE 0.145" dia. Outer jacket: PVC Nominal impedance: 75 ohms Velocity of propagation: 83% Capacitance: 16.2 pF/ft. Nominal attenuation: 0.67 dB/100 ft. @ 1 MHz Overall diameter: 0.232 x 0.450".
